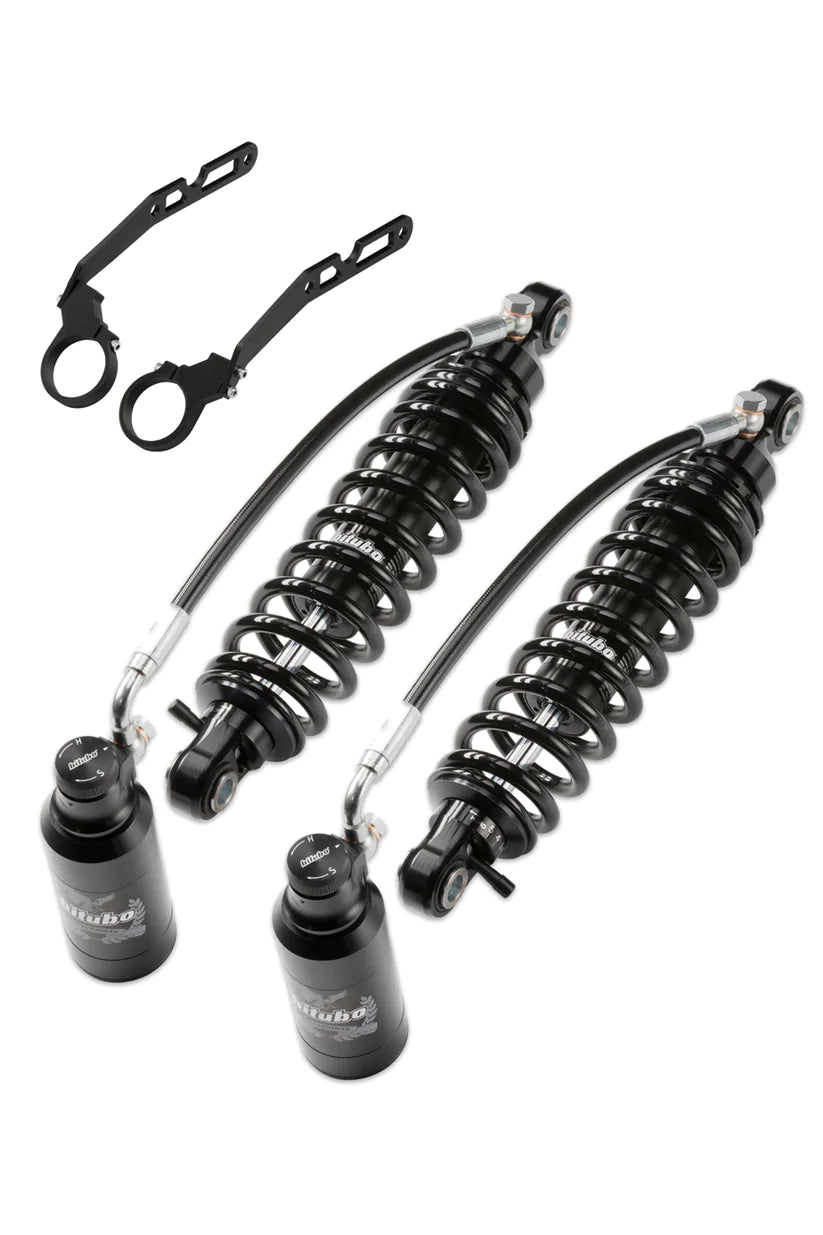

Bitubo WMM Remote Touring Piggyback Shocks

The most competitive shocks for Performance Baggers in the market! New WMM twin remote piggyback shocks designed, tuned and handmade in Italy by world champion race suspension experts specifically for 2014+ HD Touring models.

Easily adjustable with an exposed remote reservoir featuring a 12 click compression knob, 5 position rebound adjustment lever, 0.5” length extension and fine thread preload nut to help setup the ride for maximum performance. Fully serviceable and rebuildable, including mounting brackets, preload adjustment tool and LONG-LIFE Warranty.

Technical features:

Shock body manufactured with high resistance alloyed steel, Ø12mm steel rod, separated aluminum compensation chamber, gas pressurized (Nitrogen), with floating piston oil/gas separator. Precision CNC machined billet aluminum alloy heads.

Adjustments:

Rebound: 5 positions

Compression: 12 clicks

Spring preload: Fine Tune Thread

Fitment:

• 2014-Current Touring Models

HD040WMM02V2

Length: 12”/306mm

Total Stroke: 2.5"/64mm

Spring Rate: 2.5kg/mm

HD051WMM02V2

Length: 12.5”/316mm

Total Stroke: 2.9"/74mm

Spring Rate: 2.5kg/mm

HD054WMM02V2

Length: 13”/326mm

Total Stroke: 3.3"/84mm

Spring Rate: 2.5kg/mm

HD058WMM02V2

Length: 14”/356mm

Total Stroke: 4.1"/104mm

Spring Rate: 2.5kg/mm
